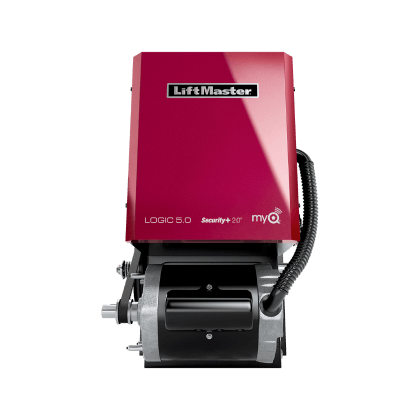

Liftmaster DJ

Door Lock Jackshaft Operator - Logic 5.0

  • For shopping malls and cafeterias. Includes floor-level chain hoist for manual lifting of smaller/lighter doors/grilles
  • Rated duty cycle: 25 per hour; Up to 90 cycles per day.
  • Internal doorlock sensor prevents damage by restricting door activation while door is locked.
  • Wall or hood mounts for rolling doors/grilles and sectional overhead doors with vertical high lift.
VIEW BROCHURE REQUEST A QUOTE




  • Multiple Power Options Available in 1/2, and 3/4 HP
  • Dual Voltage Connections Single-phase: 115V and 230V 3-phase: 208V, 230V and 460V Discrete model: 575V
  • Customizable Voltage To meet job requirements

  • Security+® - Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.
  • Safety Standards - Meets UL 325 Safety Standards.
  • Commercial Safety Sensors - Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
  • Timer to Close - Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
  • Monitor and Control myQ® technology enables monitoring and control of the operators through a mobile app.
  • Real-time alerts Indicate the status of doors via email or push notifications.

WHAT'S INCLUDED

Commercial Photo Eyes

CPS-U

Commercial Photo Eyes
3-Button Station

02-103L

3-Button Station
